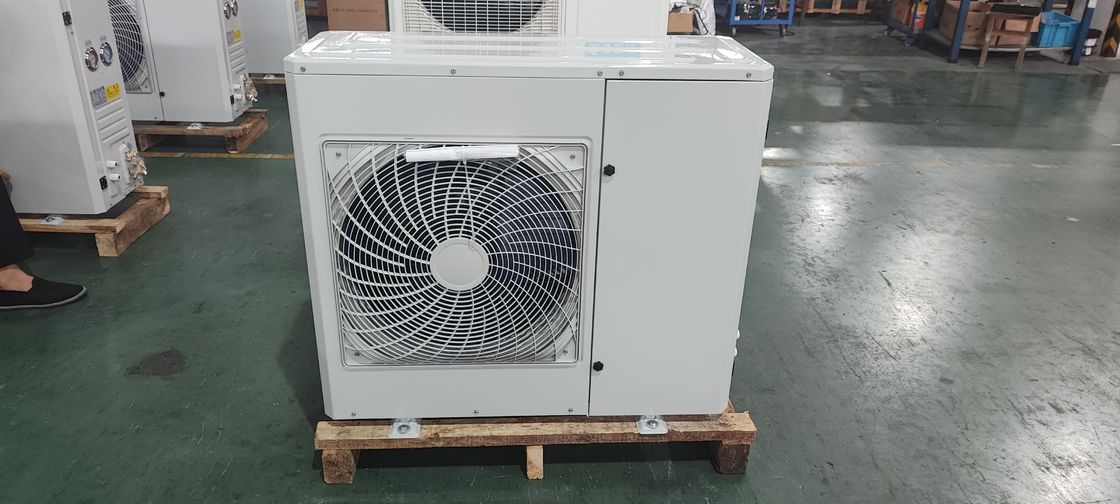

Low vibration, low noise, adopting an open door structure, suitable for compression condensing units with a maximum ambient temperature of 45 ℃

KCWS series shell and tube water-cooled condenser product

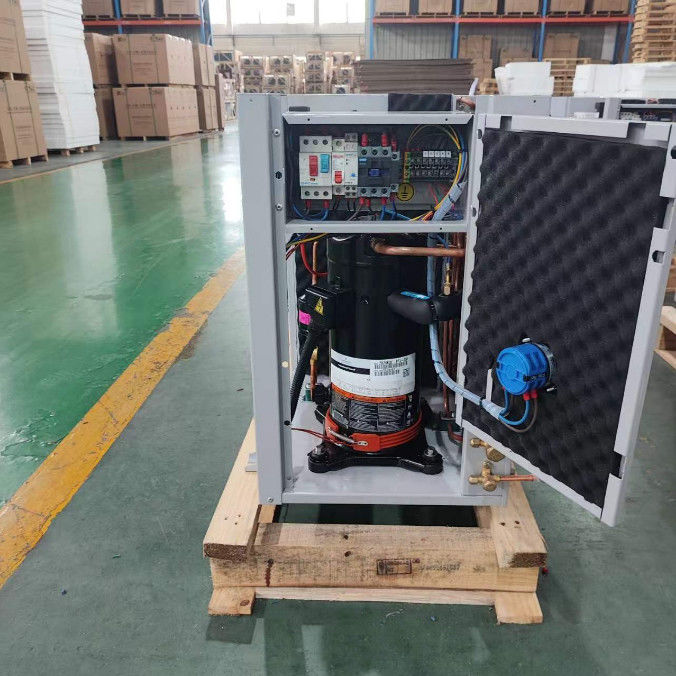

   Adapt to a maximum ambient temperature of 45 ° C, significantly improving the operational reliability of the unit. The unit has complete protection measures such as high and low pressure protection, and high exhaust temperature protection. The new generation octagonal sheet metal structure improves structural strength and enhances three-dimensional sense; Paste wave absorbing cotton inside the box to effectively block noise and make operation quieter! Integrated shell design, no need for computer room, no need for rain protection, easy installation; The brand new open door structure design eliminates the need to disassemble the front panel during maintenance, making maintenance more convenient! Standard configuration of high and low pressure gauges makes parameter acquisition easier and diagnostic operation more convenient; External connection, threaded connection, cone sealing, no need for welding tools, simple, convenient and easy to operate.
Product Introduction

1. Compressor: An internationally renowned scroll compressor with reliable quality, superior performance, low vibration, low noise, and quieter operation,
2. Heat exchanger: Italian Unilab professional heat exchanger design software simulation design, more reasonable heat exchange design, and more efficient performance
3. Coil: The heat exchanger uses small diameter high-efficiency internally threaded copper tubes, which have high heat transfer efficiency, low filling volume, and are economical and environmentally friendly;
4. Fins: made of hydrophilic aluminum foil, polyurethane coating, corrugated sheet, with excellent heat transfer performance and corrosion resistance;
5. Fan blade: Fiberglass reinforced ABS fan blade, optimized blade design, high strength, high heat resistance, large air volume, and high efficiency;
6. Motor: High efficiency internal rotor 6-stage motor, low speed, low noise, high efficiency;
7. Fan: Spiral guide fan grille for smoother airflow and better heat transfer effect

How to assure quality? Any procedure?

Our QC department will make sure of each step

Do you factory?

We are factory established in 1995 and through 30years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.

Why choose us

Professional:30years focus one thing-refrigeration equipments

Material we use sufficient

Certificate:CE, ISO, and cetiifcate of producing special pressure equipment

Projects reference
